Hydrogen Sorption on the Different Types of the Boron-Carbon Nanotubes
Sergei Boroznin1, Irina Zaporotskova1, Natalia Boroznina1, Lev Kozhitov2
1Volgograd State University
Prospect Universitetskii, 100, 400062, Volgograd, Russia
Leninsky Prospekt, 4, 119049, Moscow, Russia
Abstract - In this research interaction of atomic and molecular hydrogen with carbon nanotubes containing boron impurities is considered. Process was modelled by step-by-step approach of atom or molecule of hydrogen to a surface of a nanotube. Calculations were carried out with use of model of a molecular cluster within a method of density functional theory (DFT). The research of the electronic and energy structure of the complex received in a consequence of influence of step-by-step approach of adatom to a surface of a carbon nanotubes containing boron impurities was conducted.
Keywords: Boron-carbon nanotubes, Hydrogenation, Adsorption, Density functional theory, Quantum-chemical research.
© Copyright 2020 Authors - This is an Open Access article published under the Creative Commons Attribution License terms. Unrestricted use, distribution, and reproduction in any medium are permitted, provided the original work is properly cited.
Date Received: 2020-11-11
Date Accepted: 2020-11-19
Date Published: 2020-12-14
In-depth study of unique sorption and electronic-power properties carbon nanotubes caused search of the novel nanostructures . In 2003 single-layer boron-carbon nanotubes were synthesized . This matter is a new class of the nanotube systems with the unique physical and chemical properties offering many fields of their use in technology .
In the last decade, the number of a possible carbon nanotube (CNT) using as the materials capable to accumulate and store hydrogen that is the ideal environmentally friendly energy carrier widespread in the nature [3-6] is widely discussed. It will allow solving, in particular, a problem of storage and transportation of hydrogen. For these years, there are many researches devoted to theoretical and experimental study of sorption activity of carbon nanotubes concerning hydrogen [7,8].
Moreover, it is possible to assume, that carbon-boron BC nanotube will also have high sorption activity in relation to hydrogen. It caused high interest in fundamental studying mechanisms of interaction between hydrogen and born-carbon nanotubes. More detailed studying can define possibilities of their use during creation of new accumulators of hydrogen.
2. Calculation Method
This article describe the research of the mechanism of adsorption of hydrogen atom and molecule on an outer surface of boron-containing BC nanotube (6.6). Calculations have been carried out using quantum and chemical calculation methods of DFT (Density functional theory).
According to Density Functional Theory, the properties of a many-electron system including energy can be defined by using an electron density functional. The system is described by electronic density as ρ(r):
where Φe is the many-electron wave function of the system, σi is the set of spin and spatial coordinates of electrons, N is the number of electrons. Thus, ρ(r) is a function of only three spatial coordinates r of the point at which ρ (r) gives the probability of detecting any of the electrons of the molecule .
If any property of the ground state of a molecule can be expressed in terms of ρ, then the electron energy in the DFT is:
where T [ρ] is the kinetic energy, Ven[ρ] is the potential energy of electron-nuclear interactions, Vee[ρ] is the energy of electron-electron interactions, which can be written as:
where VCoul[ρ] is the energy of the Coulomb interaction of electrons, and Vxc[ρ] is the exchange-correlation energy.
The functionals T [ρ], Ven[ρ] and VCoul[ρ] can be found exactly . For the exchange-correlation potential Vxc[ρ], the exact representation is not known and there are a large number of models for its description. DFT is used with various functionals and one of the most popular is B3LYP, a hybrid functional that includes three components of the exchange functional (exact Hartree-Fock exchange operator, Becke functional and Slater functional, and the correlation part is a combination of the Lee-Yang-Parr functional (LYP) and Vosko-Vilka-Nusar ( VWN). A feature of this approach is that the three exchange components are taken with weighting factors selected based on comparison with experimental data. As a result, the approach takes on the characteristics of a semi-empirical method. It turns out that its accuracy in most cases is significantly higher than in the case of methodologically “pure” functionals. Apparently, this is a consequence of the fact that the exchange energy is nonlocal in nature and any attempts to reduce it to local functionals lead to errors. The Hartree-Fock exchange makes it possible to consider this nonlocality. Therefore, in the presented theoretical study, the B3LYP functional was used within the framework of the density functional theory. For the B3LYP hybrid functional, good convergence of experimental and theoretical results for carbon systems has been proved. The error of theoretical calculations for them is no more than 1% in terms of geometrical parameters (interatomic bonds and bond angles) and total energies.
3. Formulation of the problem

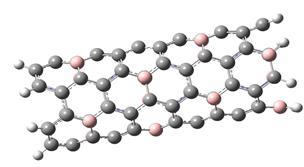

The possibility of hydrogen adsorption on an outer surface of one-wall BC5 nanotube is investigated in this research. A typical cluster of this nanotube is shown in fig. 1.

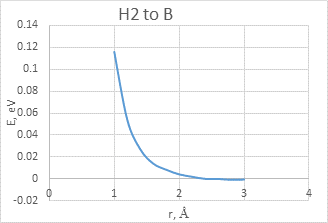

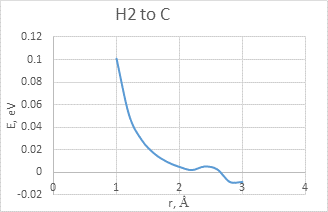

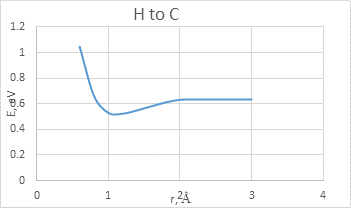

The interaction between BCNT and H atom has been modeled using the step-by-step approaching to the surface of the nanotube (with a step 0,1 A). The hydrogen atom located straight above the sorption center in all cases. The DFT calculation suggested us to build the potential energy curves (fig. 2). The view of these curves allowed us to make the conclusion that atomic adsorption is possible for all variants (fig. 2a and 2b). However, hydrogen molecule doesn’t have any kind of interaction with nanotube surface (fig. 2c and 2d). It could be explained with high force of interatomic interaction in the hydrogen molecule.
The analysis of the electronic structure showed that the positive charge is located on the hydrogen atom while the boron or carbon atom of the nanotube surface get the negative one. This means that along with the weak van der Waals interaction Coulomb interaction arises between a boron (or carbon) atom and a hydrogen atom.
The question remained open: does the concentration of boron atoms near the sorption center affect the course of adsorption processes? To respond to it, the results were compared with previously obtained data for the ВС3 of nanotubes of types A and B [10, 11]. Hydrogen was located at 4 positions above the surface of the nanotube (Figure 3). Computer simulation of adsorption was carried out in a similar manner to the previous study.

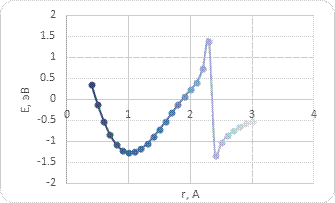

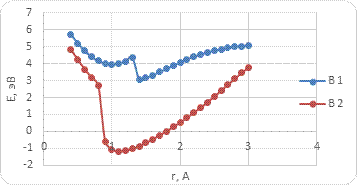

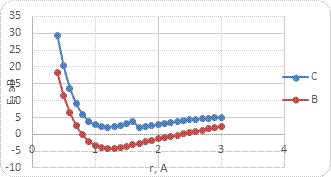

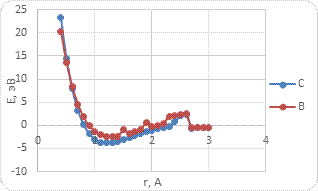

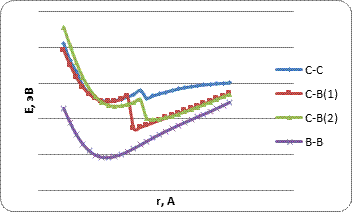

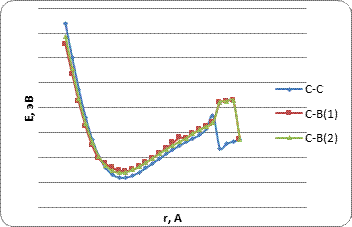

Based on the results of the study, the energy curves of the atom's interaction with the BCNT surface were built (Fig. 4-6). The main parameters of the study are given in Table 1 and Table 2.

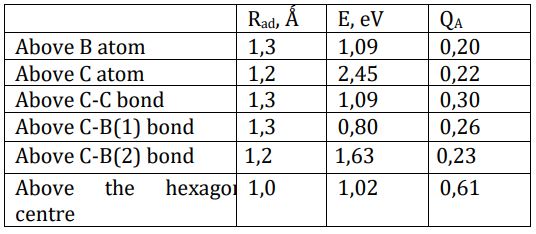

Table 1. The main characteristics of atomic hydrogen adsorption processes on the surface of borocarbon nanotubes of type A for the considered options for the orientation of atom H relative to the surface of tubulens: Ead - adsorption energy; rad - adsorption distance; QA are effective charges on adatoms.

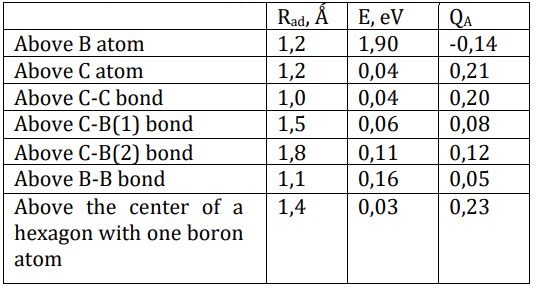

Table 2. The main characteristics of atomic hydrogen adsorption processes on the surface of borocarbon nanotubes of type B for the considered options for orientation of atom H relative to the surface of tubulens: Ead - adsorption energy; rad - adsorption distance; QA - effective charges on adatom
Thus, theoretical studies have shown that the described borocarbon nanotubes interact with atomic hydrogen and do not react to the presence of a Н2 molecule. The H atom is attached to the nanotubes at a distance corresponding to the chemical bond between the elements. Values of adsorption energy make it possible to predict formation of metastable complex "hydrogen atom - borocarbon nanotube." Molecular hydrogen does not react with the nanotube. The reason for this may be a strong bond between hydrogen atoms, preventing them from interacting with other substances without the application of external forces. The analysis of the electronic structure showed that the positive charge is located on the hydrogen atom while the boron or carbon atom of the nanotube surface get the negative one. This means that along with the weak van der Waals interaction Coulomb interaction arises between a boron (or carbon) atom and a hydrogen atom. Studies have shown that boron-carbon nanotubes can act as storage facilities for atomic hydrogen, while allowing it to be separated from molecular, due to its sorption capacity.
For boron-containing (ВС3) nanotubes, when the adsorption center is located above boron atoms, in the center of a hexagon containing two B atoms, and above the B-B bond center, the adsorption process of atomic hydrogen is energetically most favorable, as evidenced by the adsorption energy values and surface profiles of the potential energies of these processes. The adsorption energy of the H atom for borocarbon and boronitride nanotubulenes is approximately the same and is ≈1,5 eV , while for pure boron nanotubes it is small (0.07 eV) . The best adsorbent of atomic hydrogen on the outer surface are carbon nanotubes, since their adsorption energy exceeds these values for other types of nanotubes (4.07 eV) . Therefore, it is possible to build a number of activities of some types of tubulenes in relation to atomic hydrogen (from more activity to less): carbon, boron-containing (ВС3 and BN), boron hexagonal NTs.
