Comparative Analysis of Sensory Activity of Carbon and Boron Nitride Nanotubes with Boundary Modification

Natalia Boroznina1, Irina Zaporotskova1, Sergei Boroznin1, Lev Kozhitov2, Pavel Zaporotskov1

1Volgograd State University
prospect Universitetskii, 100, 400062, Volgograd, Russia
boroznina.natalya@volsu.ru; irinazaporotskova@gmail.com
2NUST MISIS
Leninsky Prospekt, 4, 119049, Moscow, Russia
kozitov@misis.ru

Abstract - The high sensitivity of the electronic properties of nanotubes to molecules adsorbed on their surface and the unparalleled unit surface providing for this high sensitivity make nanotubes a promising starting material for the development of superminiaturized chemical and biological sensors. Sorption gas sensors are the largest group of gas sensors. Their main operation principle is adsorption during which an adsorbed gas molecule transfers an electron to or takes it from a nanotube. In this paper we represent the investigation of sensor selectivity for alkali metals and their ions for boundary modified with carboxyl, amino or nitro group carbon nanotube. We also consider the features of the interaction of alkali metal atoms with boronitride nanotubes. The paper will compare the features of the interaction of carbon nanotubes and boronitride nanotubes with potassium, lithium and sodium atoms.It has been found that sensors fabricated on their basis will have high selectivity and response to the presence of ultralow quantities of materials, e.g. metals included in salts and alkali, and this shows good promise for their use in chemistry, biology, medicine etc.

Keywords: Carbon nanotubes, boron nitride nanotubes, nanosensors, adsorption, quantum-chemical calculations, density functional theory, boundary modification, carboxyl group.

© Copyright 2020 Authors - This is an Open Access article published under the Creative Commons Attribution License terms. Unrestricted use, distribution, and reproduction in any medium are permitted, provided the original work is properly cited.

Date Received: 2020-11-11
Date Accepted: 2020-11-12
Date Published: 2020-12-14

1. Introduction

The discovery of carbon nanotubes is one of the most important achievements of the advanced science. Nanotubes are the new materials with unique physicochemical properties. Carbon nanotubes can find applications in a great number of areas [1,2]: as additives to polymers, in autoelectron emission for cathode rays of lighting components, as elements of flat displays and lithium battery anodes. It may be use as hydrogen storage, composite materials, nanoprobes, haigly-sensitive sensors , ect.

A nanotube is a surface structure, so its whole weight is concentrated in its surface layers. This feature is the origin of the uniquely large unit surface of tubulenes which in turn predetermines their electrochemical and adsorption properties [3]. The high sensitivity of the electronic properties of nanotubes to molecules adsorbed on their surface and the unparalleled unit surface providing for this high sensitivity make CNT a promising starting material for the development of superminiaturized chemical and biological sensors. The operation principle of these sensors is based on changes in the V–I curves of nanotubes as a result of adsorption of specific molecules on their surface. The use of CNT in sensor devices is one of their most promising applications in electronics. Several types of gas sensors on the basis of the CNT are discussed in literature [4]. It include  sorption gas sensors, ionization gas sensors, capacitance gas sensors, resonance frequency shift gas sensors. Experimental and theoretical studies showed that CNT are an extremely promising material for further use in the field. Further development of nanotube technologies will provide new physical objects the properties of which will be of great scientific and practical interest. Thanks to their unique structure and properties the CNT can be used as active elements of sensors for the detection of numerous materials including gases, organic compounds, metals etc. Sensors fabricated on their basis will have high selectivity and response to the presence of ultralow quantities of materials, e.g. metals included in salts and alkali, and this shows good promise for their use in chemistry, biology, medicine etc.

The main operation principle of sorption gas sensors is adsorption during which an adsorbed gas molecule transfers an electron to or takes it from a nanotube. This changes the electrical properties of the CNT, and this change can be detected [3]. There are gas sensors based on pure CNT, on CNT modified by functional groups, metals, polymers or surface defects.

CNT modification changes the electronic properties of the nanotubes and increases their selectivity and response to specific gases.

In [5] reported that a sensor was designed for detecting gases and organic vapors at room temperature the detection limit of which was as low as 44 ppb for NO2 and 262 ppb for nitrotoluene. The recovery time of that sensor was ~10 h due to the high bond energy between the CNT and some gases. Then this recovery time was reduced to 10 min by exposing to UV radiation which facilitated the desorption of gas molecules.

To reduce the sensor recovery time after gas detection by a sorption mechanism, attempts were made to accelerate gas desorption by heating sensor detectors [6].

The possibility of fabricating multiwalled CNT based sensors was discussed [7,8]. Sensor on the basis of ultrathin CNT films [9] was used for NO2 and NH3 detection at room temperature. The authors proposed a method of synthesizing ~5 nm thick films with a high density of nanotubes ensuring high sensitivity and reproducibility of the sensor, i.e. 1 ppm for NO2 and 7 ppm for NH3. Gas desorption was accelerated by UV exposure.

CNT are often modified by adding the carboxyl group –СООН. This group creates reactive sections at the terminations and the side walls of the CNT where active interaction with various compounds occurs. For example, it was shown [10] that sensors synthesized from carboxylated single-walled CNT were sensitive to CO with a 1 ppm detection limit whereas pure single-walled CNT did not respond to this gas. The NO2 gas sensitivity of single-walled CNT functionalized by the amino group –NH2 was studied [11]. The amino group acts as a charge transfer agent of the semiconducting CNT that increases the number of electrons transferred from the nanotube to the NO2 molecule.

Carbon nanotube boundary-modified carboxyl group was created. The authors used a multi-walled nanotube attached to the golden pyramid of the microscope's cantilever. A carboxyl group formed at the open nanotube boundary. It was reported that carboxylated CNT are sensitive to ethanol vapors and NO, СО and NO2 gases.

Boron nitride materials are gaining interest among the inorganic systems currently being studied. Boron nitrides (BN) are materials derived from boron oxide and ammonia that consist of an equal number of boron (B) and nitrogen (N) atoms and have a carbon-like structure. For example, hexagonal boron nitride (h-BN) is similar to graphite and is also known as white graphene [13]. Boron nitride structures have excellent physical properties, remarkable thermal and chemical properties.

If necessary the carboxyl group can be substituted for other functional groups using methods of organic chemistry [14]. Despite previous practical studies that have established the possibility of functionalization of CNT by some chemical groups, theoretical calculations of the possibility of interaction of the resulting system with different atoms and molecules have not been carried out, nor has the most preferred functional group been identified to determine alkali metal atoms. This determines the novelty of the study being conducted.

Considering the high interest of the scientific community in boron nitride-based materials, as well as the peculiarities of their conductive properties (All of them refer to semiconductors with a uniform large forbidden zone regardless of radius and chirality, as well as the number of layers of nanotubes [15, 16]), It is relevant to study the possibility of boundary modification of borocarbon nanotubes, which can lead to a change in some, including sorption properties of the nanotubular structure. And the consistency of the conducting properties of the BNNT, in turn, can ensure their high efficiency when used as elements of sensor nano-devices.

Thus, the studies we have carried out are relevant, as modeling the interaction of alkali metal atoms with the CNT-functional group system may be the basis for the creation of an ultra-miniature highly sensitive sensor for determining the microvalues of the substance. Such a sensor can be used in medicine, to solve environmental needs, to determine residual traces of narcotic and psychotropic substances, etc.

2. Related Work

It is preferred that the literature survey be separated from the Introduction section. Therefore, a designated section is often used. However, it is completely acceptable for the related work section to be merged with the introduction. Citation and referencing follows the IEEE style with two minor modification:

  1. In the References section, the IEEE style uses “et al” when three or more authors are available; we DO NOT use this rule. In other words, in the Reference section, all authors need to be mentioned for each manuscript.
  2. In the references section, the IEEE style abbreviates/shortens the names of journals or conferences; we DO NOT use this rule

Otherwise our citing and referencing method is similar to the IEEE style. When citing articles in the body of the manuscript, we use numbers such as [1], [2]; in the order in which they are mentioned in the text. Following is an example of how references should be cited in the body of the manuscript: while analytical models are often used for this purpose [3]-[5]; Jones et al. [3] have illustrated that numerical models are also accurate means for approximating such systems.

3. Formulation of the problem

We studied the mechanism of carboxyl functional group attachment to a single-walled semi-infinite carbon nanotube zig-zag (6,0). Nanotube was simulated within the molecular cluster model using the DFT calculation method. One of the cluster boundaries was closed by pseudoatoms hydrogen, and a carboxyl group was attached to the carbon atom at the other CNT boundary.

The mechanism of carboxyl group attachment to a selected carbon atom at an open nanotube boundary was simulated by step-by-step approximation of the carboxyl group with a 0.01 nm step along a perpendicular line to the tube boundary and oriented to a C atom. As a result the formation of a chemical bond between the nanotube and carboxyl group was observed (Fig. 1).

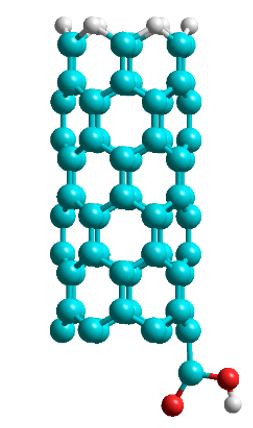

Figure 1. Model of semi-infinite CNT (6, 0) with functional carboxyl group.

We studied the interaction mechanism between potassium, sodium and lithium atoms with terminal oxygen and hydrogen atoms of the carboxyl group. The process was simulated by step-by-step (0,1Ǻ) approximation of the selected metal atoms to the O or H atom of the functional group (fig. 2). The figures show the characteristic minimums lying in the negative range of values, which may indicate the presence of interaction of the CNT-carboxyl group system with alkali metal atoms.

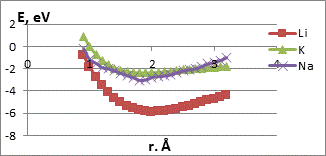

Figure 2. Energy profiles of interaction between CNT modified by carboxyl group –СООН and Na, K and Li depending on distance between (a) metal atoms and hydrogen atom of the group and (b) metal atoms and oxygen atom of the group.

The main parameters of К, Li and Na atom attachment to the atoms of the carboxyl group are in the Table 1. The interaction distances corresponding to the minima in the energy profiles are quite large. So we can assume that the interaction between the functional group atoms and the selected metal atoms is the weak Vander-Waals one. This is an important result confirming the possibility of multiple reusing of these probes without destruction.

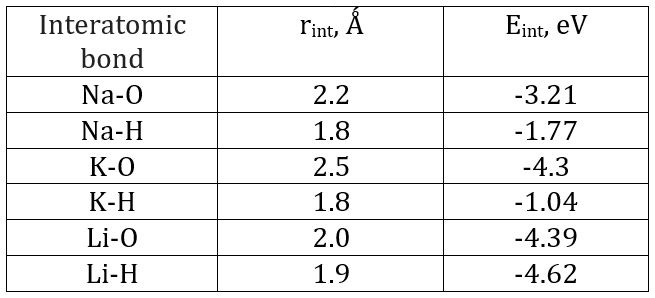

Table 1. Main parameters of K, Li, Na attachment to the O and H atoms of the carboxyl group

Then we studied the scanning of a surface containing sodium, potassium or lithium atoms for the determination of the sensitivity of CNT with functional group to selected chemical elements. The process was simulated by step-by-step  approximation of the metal  atoms or ions to the functional group that was parallel to the modified nanotube boundary (Fig. 3)

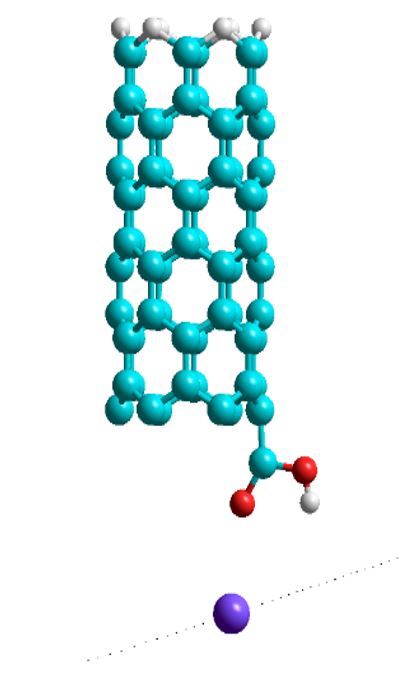

Figure 3. Simulation of scanning of an arbitrary surface area containing Na atom (shown as purple ball). Dashed line shows sodium atom migration relative to nanotube with functional carboxyl group. Green balls in the figure show carbon atoms, red balls are oxygen atoms and white ones are hydrogen atoms.

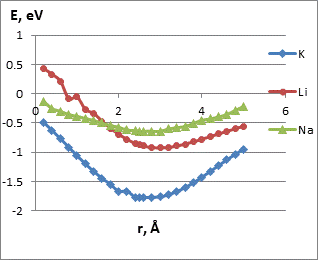

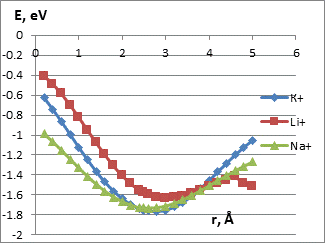

Figure 4. Profiles of energy interaction between (a) atoms or (b) ions of metal (K, Li, Na) and CNT + СООН system obtained by simulation of scanning. r = 0 is the point under the hydrogen atom of the carboxyl group.

Analysis of the interaction energy profiles (Fig. 4) showed that the modified nanotube became sensitive to the selected metals. The energy profiles had typical minima. Main parameters of interaction are summarized in Table 2. The minimum energy values correspond to the position of the selected atom or ion under the oxygen atom of the carboxyl group. An interaction distance ranging from 3.0 to 2.5 A makes it possible to judge the presence of physical adsorption. Such interaction can predict the possibility of multiple use of a carboxylated CNT sensor. The results prove the possibility of using modified CNT as sensors for some elements and radicals. Their presence can be detected by controlling the change in the potential in the system.

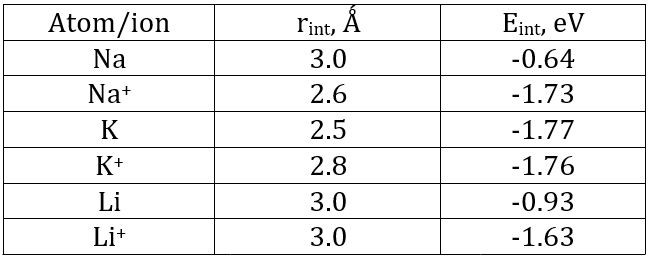

Table 2. Main parameters of interaction of carboxylated CNT (6.0) with metal atoms and ions as determined by surface scanning.

To create a more complete picture and determine the most energy-efficient system for determining alkaline atoms, we studied the interaction of metal atoms and ions with carbon nanotubes modified amino and nitro group (Fig .5). The energy curves of the interaction are in the fig 6.

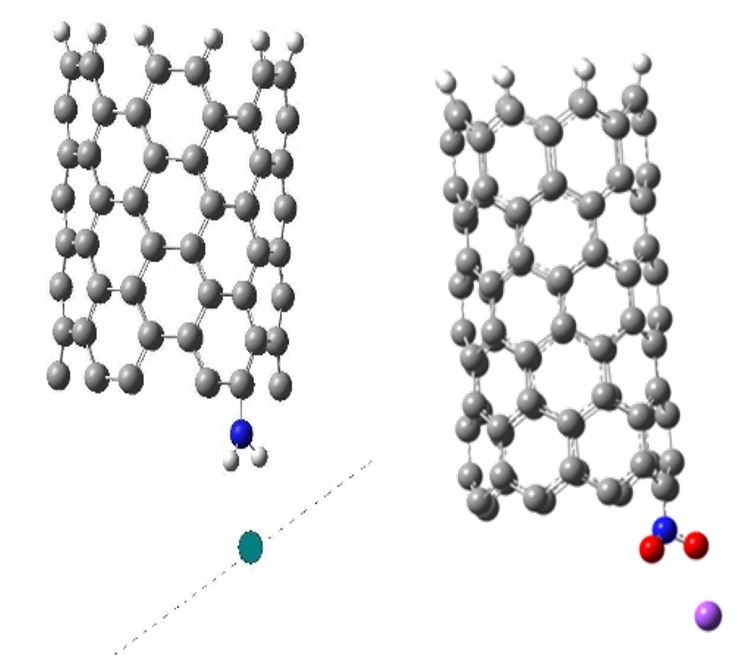

Figure 5. Simulation of scanning of an arbitrary surface area containing Li and Na atom (shown as blue and purple ball).
a)
b)

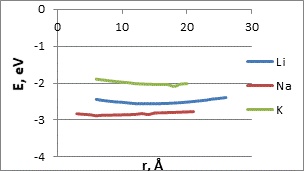

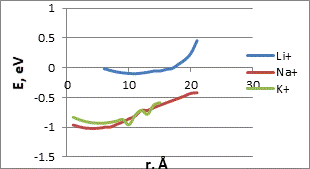

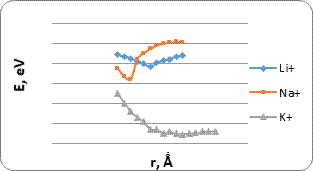

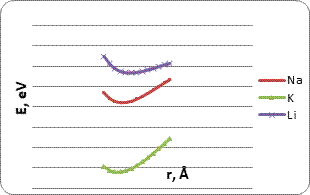

Figure 6. The energy curves of the interaction between atoms (or ions) of metals (Na, K, Li) and CNT (6, 6), modified amino (a) and nitro (b) group.

In the depicted potential energy curves (Fig 6) there are visible minimums which, as in the case of the modified carboxyl group of CNT, lie in the negative range, which also makes it possible to judge the presence of interaction between nanosystems and potassium, lithium and sodium atoms. Main parameters of interaction are given in Tables 3, 4

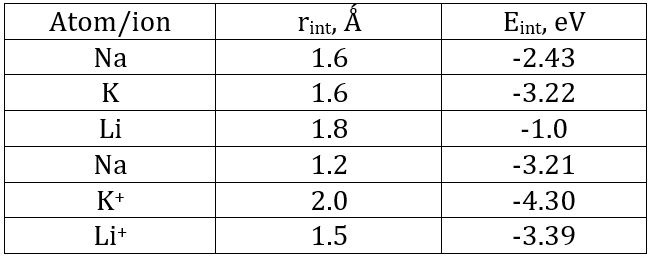

Table 3. Main parameters of K, Li, Na attachment to CNT (6.0) modified by amino group.

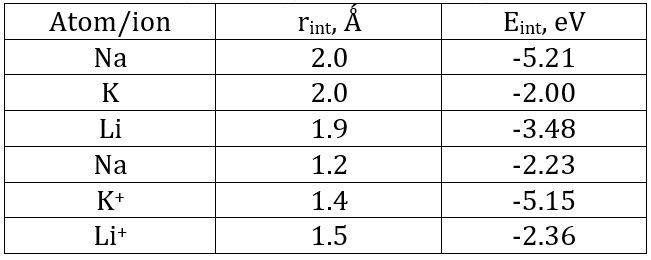

Table 4. Main parameters of interaction of CNT (6.0) modified by amino group with K, Li, Na atoms and ions as determinate by arbitrary surface scanning simulation.

Some of the main parameters characterizing the scanning process are summarized in tables 1-4. All interaction energies in scanning simulation range from 0.5 eV to 5.2 eV. This value of interaction energy indicates the presence of physical adsorption. Also, by analyzing the values of interaction energy and interaction distance, it is possible to conclude the most advantageous with respect to interaction with alkali metal atoms to the functional group. This information is discussed in the conclusion.

In order to compare the characteristics of the interaction of carbon and boron nitride nanotube with metal atoms, computer simulations were made. Process of joining the functional amine group (-NH2) to the open boron nitride nanotube boundary was simulated for two options: nitrogen atom and boron atom of the boundary (Fig.7). Analysis of the calculation results determined the adsorption distance, which was 1.5 A for both modifications, and the reaction energy, which was 2.8 eV for the boron atom attachment and 2.66 eV for nitrogen atom attachment (Figure 8).

Fugure 7. Model of boron nitride nanotubes (6, 6) modified with amine group attached to boron atom at nanotube boundary

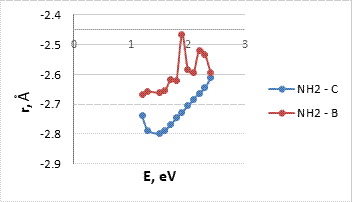

Figure 8. Potential energy curves of the interaction process for BN nanotube with functional amino group.

Further, computer simulations were performed and the adsorption interaction of selected alkali metal atoms with the obtained BNT-amine group complex was calculated. Calculations were carried out for the complex with the variant of connection of the functional group to the boron atom, as it is known that in BNT electrons are mainly localized on nitrogen atoms, while boron atoms are electron-deficient [17]. Thus, because of the electron donor properties for the amino group -NH2, it will be preferable to attach to the B atom at the nanotube boundary. Based on the results of the study, energy interaction curves are constructed, which clearly demonstrate the presence of adsorption interaction (Fig. 9). Table 5 shows comparative results of analysis of complex interactions with selected alkali metal atoms.

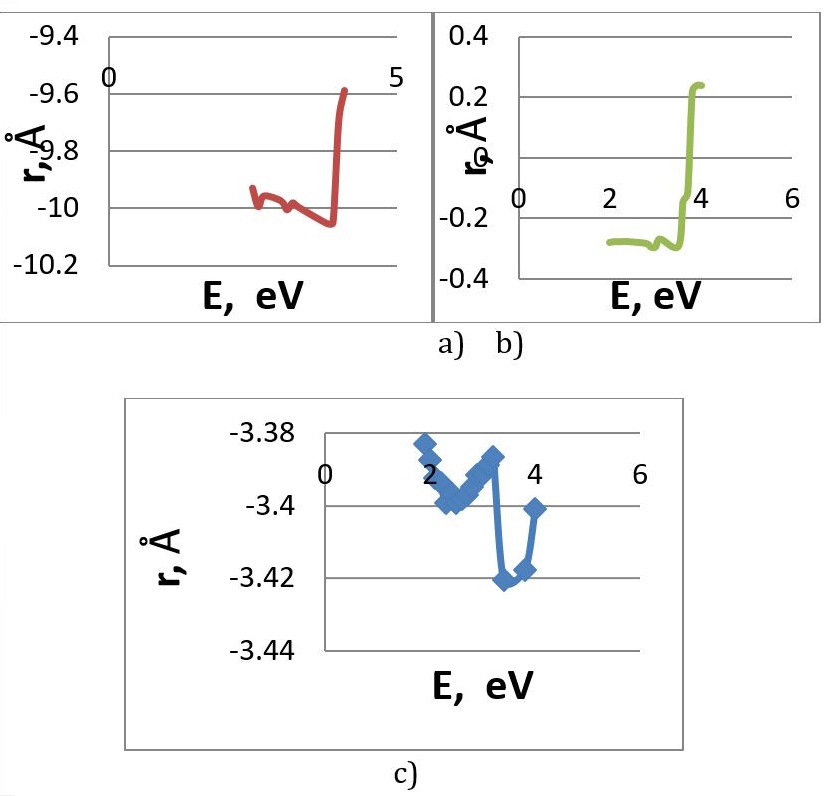

Figure 9. Surface profile of potential energy of a) lithium; b) sodium; c) potassium atom interaction with modified amine group of boronitride nanotubes.

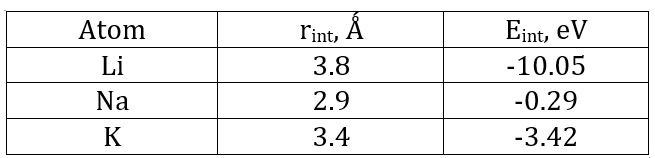

Table 5. The adsorption energies Еаd for Li, K, Na atoms and corresponding adsorption distances Rаd.

4. Conclusion

From the compare of the results, we concluded that the nanotubes functionalized by carboxyl, amino or nitro groups displayed chemical sensing the atoms and ions of the metals: potassium, sodium, and lithium. The most pronounced sensory response was observed for CNT functionalized with amino group. It is this result that underlies the study of the sensory properties of the boronitride nanotube with a modified amino group. A comparison of the interaction energy showed that the modified boronitride nanotube interacts most actively with the lithium atom. Thus, extensive research on the interaction of boronitride nanotubes with metal atoms has proved the possibility of creating sensors of sensor devices based on boronitride nanotubes modified by an amine group. This sensor system displayed the highest energy of interaction with the atoms and ions of the considered alkali metals. /p>

5. Acknowledgements

The reported research was funded by Russian President's grant № 798.2019.1 and Russian President's grant № MK-1758.2020.8.
