1. Introduction

Gold nanoparticles are used for several purposes in the biomedical sector (Tiwari, Vig et al. 2011, Dykman and Khlebtsov 2012) or for optical, chemical or electronical applications (Guo and Wang 2007, Balasubramanian, Yang et al. 2010, Zhao, Li et al. 2013, Lokesh, Shambhulinga et al. 2015). However, several studies have reported the toxicity of bare or functionalized gold nanoparticles (Goodman, McCusker et al. 2004, Alkilany and Murphy 2010, Das, Debnath et al. 2012). For example, two independent research teams demonstrated the effect of gold nanoparticles on the spermatogenesis of humans and mice (Wiwanitkit, Sereemaspun et al. 2009, Zakhidov, Pavlyuchenkova et al. 2012). Wiwanitkit et al. showed that when human semen is placed in contact with a suspension of gold nanoparticles, 25% of the sperm becomes immobile and the gold nanoparticles penetrate the head and flagellum. A recent study by Fede (2014) evaluated the toxicity of gold nanoparticles to human endothelial cells in both static and dynamic flow conditions of exposure (Fede, Fortunati et al. 2015). They confirmed that at comparable concentrations, in static conditions the toxicity of nanoparticles is higher.

Sonavane et al. observed the penetration of gold nanoparticles (15 nm, 102 nm and 198 nm) through rat skin. They concluded that the permeability coefficient and diffusion coefficient decrease as the nanoparticle size increases. They also measured a lag time (release of nanoparticles on the opposite face) of 3 to 6 hours only for particles with a diameter of 102 nm and 198 nm, respectively. Other studies have proven the penetration of different nanoparticles through the skin: gold (Graf, Nordmeyer et al. 2015), titanium dioxide (Sadrieh, Wokovich et al. 2010, Vogt, Rancan et al. 2014), quantum dots (Ryman-Rasmussen, Riviere et al. 2006), fullerene (Rouse, Yang et al. 2007), zinc oxide (Gulson, McCall et al. 2010), silver (Vogt, Rancan et al. 2014, Zhu, Choe et al. 2014) and silicon dioxide (Vogt, Rancan et al. 2014).

Only few research groups have worked on the effectiveness of disposable protective gloves against nanoparticles; and most have focused on nanoaerosols. Golanski et al. performed tests on nitrile rubber, latex, neoprene and vinyl in contact with graphite nanoaerosols between 30 to 80 nm in size (Golanski, Guiot et al. 2008). Only diffusion coefficients were measured for the nanoparticles of 80 nm in diameter. In another study, the same researchers concluded the non-penetration of graphite nanoaerosols (40 nm) through the same types of gloves and under the same experimental conditions (Golanski, Guiot et al. 2009). Park et al. studied the passage of silver nanoaerosols through nitrile rubber and latex gloves using Golanski’s experimental setup (Park, Kwak et al. 2011) and concluded non-penetration for both models of gloves. Recently, Vinches et al. measured a significant penetration of TiO2 nanoparticles suspended in water through nitrile rubber and latex gloves under conditions simulating occupational use (i.e., using mechanical deformations) (Vinches, Dolez et al. 2013, Vinches, Peyrot et al. 2014).

The objectives of the present work are to: 1) determine the effectiveness of nitrile rubber gloves against gold nanoparticles in suspension and highlight the difficulties in their evaluation, and 2) study certain external parameters to attempt to explain the difficulties encountered.

2. Materials

2. 1. Protective Gloves

The model of disposable 100% nitrile rubber glove selected for this study (Nitri-care®3005PF) is from Showa Best Glove. It is one of the most commonly used safety gloves in the industry and in laboratories. It is made of latex, is powder-free and does not contain silica. For this study, the glove samples are taken from two boxes belonging to separate production batches. To simplify the notation, the gloves from the first batch are identified as NBR-1 and those from the second batch, NBR-2. The average thickness of this type of glove is 99.4±3.5 µm. All the samples used for penetration or swelling tests are cut from the palm or back section of the gloves.

2. 2. Nanoparticle Suspensions, Filtrates and Physiological Solution

Gold nanoparticle suspensions were purchased from Nanocomposix (NanoXact grade, San Diego, CA). The first suspension is 50 nm gold particles (nAu-50) and the second 5 nm gold particles (nAu-5). Both suspensions are in MilliQ water and the gold nanoparticles are coated with polyvinylpyrrolidone. The gold concentration in the suspensions is 0.05 mg/mL. For all the tests, commercial suspensions are used directly without any dilution. The stability is guaranteed by the supplier for 6 months and both suspensions are stored at 4°C away from light.

To determine the nanoparticle effect of colloidal gold suspensions on the swelling phenomenon, nAu-5 and nAu-50 suspensions are filtered by ultrafiltration (Amicon Ultra-4, 3kDa, Millipore) to separate the nanoparticles from the carrier liquid.

A physiological solution employed as sampling solution is composed of 0.5 % (w/w) sodium chloride, 0.1 % (w/w) lactic acid and 0.1 % (w/w) urea (E.C.F. 1998). The pH of the solution is adjusted to 6 using a 1% ammonia solution.

3. Methods

3. 1. Characterization of Gold Suspensions

Particle hydrodynamic diameters are measured by dynamic light scattering (DLS) (Mobius-Wyatt). To obtain statistically significant data, triplicate measurements are performed for each suspension. Moreover, for each type of particle, more than 100 particles are imaged by TEM (Hitachi JEM-2100F) to obtain the size distribution of the nAu.

3. 2. Experimental Setup and Sampling Protocol

For this study, the experimental setup employed is the same reported by Vinches et al. (Vinches, Peyrot et al. 2014). A glove sample is placed between an exposure chamber (containing nAu suspensions) and a sampling chamber (containing a physiological solution as sampling solution). The setup allows for a mechanical deformation (MD) of the sample when its outer surface is in contact with nAu suspensions. Before each test, the sampling chamber is rigorously cleaned to minimize the risk of contamination (ultrasonic bath in 2% nitric acid for 20 minutes and ultrasonic bath in MilliQ water for 10 minutes). The time profile of MDs is a 50% deformation every ten seconds for a total period of 3 hours (620 MDs). More details about the experimental protocol can be found in (Vinches, De Santa Barbara et al. 2013, Vinches, Peyrot et al. 2014). To obtain statistically significant data, triplicate measurements are performed for all analyses.

Before each penetration test, a control sample is produced by rinsing the sampling chamber with the sampling solution. The nAu concentration is analysed by inductively coupled plasma mass spectrometry (ICP-MS), (PerkinElmer NexION 300X) after acidic digestion with nitric acid. To reduce the sodium chloride concentration, all samples were diluted 10 times in MilliQ water.

3. 3. Strain Energy

For each MD, the stress-strain curve is plotted to illustrate the variation in strain energy. An estimation of the relative strain energy is carried out by computing the area under the curve using the trapezoid method and Matlab software. More details about strain energy evaluation can be found in (Vinches, De Santa Barbara et al. 2013).

3.4. Swelling Tests and Diffusion Coefficients

Swelling can be quantified by measuring the glove sample length change as a function of time (Perron, Desnoyers et al. 2002, Vinches, Boulebnane et al. 2012, Vinches, Perron et al. 2012). Length gain measurements are performed on rectangular samples (10 mm × 60 mm). To obtain statistically significant data, three replicate samples are tested. Samples are immersed in nAu suspensions, filtrates or MilliQ water corresponding to the liquid carrier of the gold nanoparticles. At regular intervals, samples are removed from the liquid and measured using a Vernier caliper (±0.01 mm). The length change ratio is defined as:

with L_t being the length at a given time and L₀ the corresponding reference value. For all swelling tests, triplicate measurements are performed to obtain statistically significant data.

With the length change data, it is also possible to estimate the diffusion coefficients through the glove sample for each solution. Based on Fick’s second law, the ratio between the length at time t (L_t) and infinite time (L_¥, i.e. maximum swelling) is equal to 0.5 at half-life time (t_1/2) (Vinches, Perron et al. 2012).

where D is the diffusion coefficient (m².s^-1) and e, the thickness of the sample.

The value of t_1/2 can be determined from the linear regression of  as a function of the square root of time for a value of . The diffusion coefficient can be estimated from (Vinches, Perron et al. 2012):

4. Results and Discussion

4.1. Characterization of Gold Nanoparticle Suspensions

The hydrodynamic diameters measured by DLS are (9.2±0.2) nm and (67.2±0.6) nm for nAu-5 and nAu-50, respectively. The size distributions of the nAu-5 and nAu-50 are determined by analysis of TEM images. The mean particle sizes obtained are (5.0±0.6) nm and (47.9±4.7) nm respectively. These results confirmed the manufacturer’s data.

4.2. Penetration of nAu: ICP-MS Results

The first results are obtained with NBR-1. Firstly, to ensure that the concentrations of gold measured are a result of the passage of nanoparticles through the glove sample, control tests were carried with no nanoparticles. All the gold concentrations are under the limit of detection of the ICP-MS (LOD: 0.048 μg/L).

For penetration experiments conducted with nAu-5, two replicates out of three showed significant concentrations of gold in the sample solution (7.158 μg/L and 6.424 μg/L) after 620 mechanical deformations (3 hours of deformations). This time corresponds to the estimated mean duration of wearing disposable gloves in the workplace. The gold concentration measured with the third test is below the LOD. This passage, measured in two samples out of three is possibly due to microcracks in the structure of the glove material. Although these values are low, NBR-1 cannot be considered as totally effective against 5 nm gold nanoparticles under occupational use.

In experiments conducted with nAu-50, no penetration of nanoparticles is detected in the sampling solutions (LOD: 0.019 μg/L). These results indicate a possible relationship between nanoparticle size and extent of penetration through nitrile protective gloves.

The same tests were conducted with the NBR-2 gloves and both gold colloidal suspensions. In both cases, in spite of triplicate measurements, no penetration of nanoparticles was detected (LOD < 0.037 μg/L for nAu-50 and LOD < 0.027 μg/L for nAu-5). These contradictory results compared to those obtained using NBR-1 may be linked to variability in the manufacturing process of the nitrile protective gloves.

To attempt to explain the variable performance of the nitrile gloves in the nanoparticle penetration tests, two mechanical phenomena were investigated, namely the variation of the strain energy and the swelling of nitrile rubber.

4.3. Strain energy

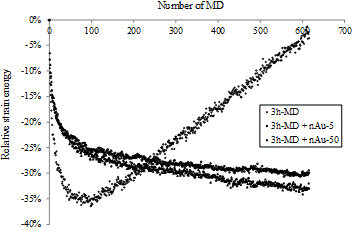

The mechanical behaviour of the glove materials in presence or absence of gold colloidal suspensions was evaluated by measuring the strain energy for each deformation. When the sample is not exposed to nAu suspensions, a significant decrease in the strain energy is observed for the first hundred deformations reaching a relative drop of 36% (Fig. 2). The Mullins effect explains these results at least for the first ten deformations (Vinches, De Santa Barbara et al. 2013). During the initial deformation, some of the polymer chains reach their limit of extensibility and break, which leads to a reduction in the energy required for the same stress (Bueche 1960). Between 10 and 100 MDs, the strain energy continues to decrease. This is possibly due to a loss of surface integrity by abrasion, which gradually decreases the thickness of the sample. Additional tests are needed to confirm this hypothesis. Finally, after 100 MDs, the relative strain energy increases linearly with the number of deformations applied. This result suggests a stiffening of the sample probably due to a crystallization phenomenon, which hold sway over the abrasion of the material (Marchal 2006). An increase of the crystallinity rate causes a loss of mechanical integrity, which could facilitate the passage of the nanoparticles through the nitrile glove samples (Vinches, De Santa Barbara et al. 2013).

Fig. 1 compares the variations of the NBR-1 material strain energy when exposed to either of the two gold suspensions. In these cases, there is no minimum observed in the curves and the relative strain energies measured decrease regardless of the number of MDs. In contact with the nanoparticle suspensions, the sample starts to swell (see section 4.4.). Gradually, polymer chains separate and release additives such as fillers, which lead to a weakening of the sample. Due to the loss of fillers and the increased spacing of the polymer chains, the phenomenon of crystallization under constraint seems to disappear completely. According to the standard deviations (3% and 3.7% for nAu-5 and nAu-50 respectively), this behaviour is independent of the NP size.

4.4. Swelling Tests and Diffusion Coefficients

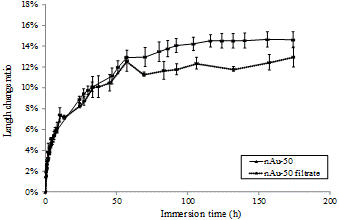

The first tests are performed with NBR-1 immersed in a nAu-50 suspension (solid line in Fig. 2). A gradual increase in length is observed, until a plateau is reached (14.5±0.7) % after 110 hours of immersion. This plateau indicates that maximum swelling has been attained. For nAu-5, the swelling reaches (14.1±0.1) % after the same immersion time. It is of interest to determine the length change ratio after 3 hours which corresponds to the penetration test duration. For nAu-5, the length change ratio is (3.7±0.3) % and for nAu-50, (3.8±0.2) %. At first glance, these values seem low, but they are significant and can affect the degree of nanoparticle penetration through nitrile rubber gloves.

To evaluate the effect of the nanoparticles, swelling tests are also performed in filtered solutions (gold colloidal suspension without particles). The result obtained when the NBR-1 sample is immersed in the nAu-50 filtrate is shown in Fig. 2. Although the length change ratio overlaps until 40 hours of immersion, a significant difference can be seen beyond this period. The value at the plateau is (11.6±0.8) %. On the other hand, there is no significant difference in maximum swelling between the nAu-5 filtrate (14.3±0.4) % and nAu-5 suspension (14.1±0.1) %.

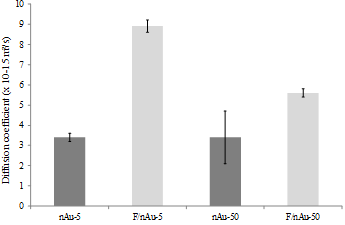

The swelling data are compiled to determine the diffusion coefficients (D) of gold suspensions and their filtrates. Fig. 3 compares the diffusion coefficients of the gold colloidal suspensions and their corresponding filtrates (F/nAu-5 and F/nAu-50) with NBR-1. Firstly, the diffusion coefficients obtained are low (10^-15 m²/s), whereas for organic solvents such as acetone, diffusion coefficients are on the order of 10^-9 m²/s (Perron, Desnoyers et al. 2002). D are comparable for both suspensions, which diffuse through NBR-1 in the same manner (3.4×10^-15 m²/s). Secondly, the diffusion coefficients of the corresponding filtered solutions are systematically higher. It is possible that the nanoparticles act as a barrier thereby reducing the diffusion of the liquid carrier through the nitrile rubber sample.

Moreover, the diffusion coefficients are different between both filtrates (5.6±0.3)×10^-15 m²/s and (8.9±0.4)×10^-15 m²/s for F/nAu-50 and F/nAu-5 respectively. These results are likely due to the difference in chemical compositions of the liquid carriers (namely, the additives used as stabilizers). To validate this hypothesis, FT-IR analysis (Fourier Transform Infrared Spectroscopy) of the colloidal suspensions and filtered solutions should be performed (see Future work section).

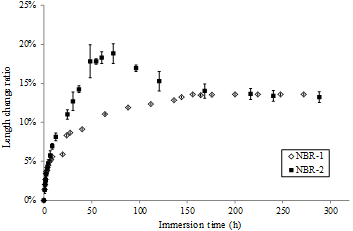

As reported in section 4.2, the penetration tests yield different results depending on the batch of nitrile gloves tested. To verify the variability in structure or chemical composition of the nitrile protective gloves, swelling tests were performed with NBR-2 in MilliQ water. The results are shown in Fig. 4. During the 10 first hours of immersion, the two curves overlap and after 150 hours, NBR-1 and NBR-2 reach the same plateau near 13.6%. However, between these times, the behaviour is completely different. NBR-2 achieves a maximum in length change (18.8% after 75 hours of immersion) and decreases gradually to a plateau. These results could be attributed to the shrinkage of a larger number of chains during the swelling, which leads to a greater removal of fillers. Following these conclusions, Energy-dispersive X-ray spectroscopy analysis (EDX) was performed to determine the chemical composition of the inner and outer surfaces of the gloves. Depending on the batch of nitrile gloves, the results present significant differences in terms of silica, calcium, zinc, chloride and sodium (fillers) mass fractions. Thus, poor stability in the chemical composition of the nitrile gloves is confirmed.

5. Conclusion

This work presents the first report on the experimental evaluation of the effectiveness of nitrile protective gloves against gold nanoparticles in solution and under simulated working conditions. The results obtained are different depending on the size of the nAu (5 or 50 nm) and also depending on the batch of gloves. Indeed, in contrast to nAu-50, nAu-5 seems to penetrate nitrile rubber gloves after 3 hours of mechanical deformations. But when the gloves are taken from a second box (different batch), no penetration is observed for both nAu.

These results highlight two main challenges linked with this type of study. The first is to understand the external parameters that can influence the penetration of nanoparticles through protective gloves. The second is to consider the irreproducibility of the chemical composition of the protective gloves. This chemical composition is not yet well controlled in the manufacturing process.

To conclude, the authors still perceive from the results in this paper much uncertainty about the effectiveness of protective gloves against nanoparticles in aqueous solutions and deem that further investigation is needed.

6. Future work

Several additional projects are currently underway to better understand the potential transfer of nanoparticles through laboratory gloves. Studies are being conducted on the swelling of glove material in colloidal and saline solutions. Tests are also being performed to evaluate the integrity of protective gloves when submitted to mechanical deformations (surface features, degree of crosslinking and crystallization). Also, further understanding as to the effect of the size and shape of the nanoparticles will be sought.

Acknowledgement

This research was supported by the Institut Robert-Sauvé de recherche en santé et sécurité du travail (IRSST). The authors acknowledge the technical contributions of Mehdi Ben Salah and Nidal Boutrigue (École de technologie supérieure) and Madjid Hadioui (Université de Montréal).
