1. Introduction

Atmospheric icing occurs when the surfaces of exposed structures come into contact with supercooled water droplets or snow particles. Ice and wet-snow adhesion to exposed surfaces is the source of several types of malfunctions in power transmission lines, aircrafts, boats etc. in cold climate regions (Farzaneh, 2008). Prevention of icing requires reducing its adhesive strength. Therefore, various de-icing and anti-icing techniques were developed over the last decades. By now, certain coatings have been developed to reduce ice adhesion resulting in lower ice or snow accumulation (Saito et al., 1997, Kulinich and Farzaneh, 2004, 2005, 2009, Menini and Farzaneh, 2009, Arianpour et al., 2013). The ideal solution would be applying a durable, easy to process, and inexpensive material which would reduce adhesion to such an extent that ice would fall off under the pull of gravity, e.g. alkyl-terminated coatings such as alkylsilane and fluoroalkylsilane-based layers (Petrenko and Peng, 2003, Kulinich and Farzaneh, 2004, Farzaneh, 2010). Good correlation between hydrophobicity of surfaces and their ice-repellent behaviour was previously reported by several groups (Saito et al., 1997, Petrenko and Peng, 2003, Farhadi et al., 2011, Arianpour et al., 2013). Superhydrophobic surfaces, exhibiting static water contact angle (CA)>150° and low values of CA hysteresis (CAH), have recently attracted significant attention. It is well known that the key factors underlying superhydrophobicity are chemical composition along with micro-/nano-hierarchical texture (Kulinich and Farzaneh, 2004, Quéré, 2005, Crick et al., 2010, Yao et al., 2010, Farhadi et al., 2011). The ability of superhydrophobic surfaces to reduce ice or snow accumulation was first tested by Saito et al., 1997. It has been also demonstrated that superhydrophobicity can improve self-cleaning and anti-corrosive properties of Al alloys (Menini and Farzaneh, 2009, Guo et al., 2005, Shaojun et al, 2011). Arianpour et al., 2010, reported delayed water freezing on rough superhydrophobic surfaces. Various techniques have been already reported for producing superhydrophobic surfaces (Meng et al., 2008, Menini and Farzaneh, 2009, Mingjie et al, 2010, Shaojun et al, 2011). Anyhow, the systematic study of their hydrophobic and ice-repellent properties has not been reported thus far. As concerns the methods used to evaluate ice-solid adhesion (Andrews et al., 1983, Croutch and Hartley, 1992, Somlo et al., 2001), in most of the research works, water was artificially frozen on top of the samples tested under unrealistic icing conditions. Therefore, testing adhesion of glaze ice prepared by spraying supercooled water droplets is expected to give more reliable results (Kulinich and Farzaneh, 2009, Menini and Farzaneh, 2009, Farhadi et al, 2011, Arianpour et al., 2013). It was clearly shown that contact angle hysteresis (CAH) along with the CA governs the ice-solid adhesion strength.

In the present study, a simple and easy-to-use approach to elaborate superhydrophobic Al alloy surface will be presented. More precisely, organic coatings terminated with alkyl groups were prepared as potential ice/snow-repellent layers on AA2024 via etching in hot water for a certain time followed by a one-layer surface modification. The prepared samples with etching time of more than three hours showed enhanced superhydrophobicity with CA>163° and CAH≤5° and demonstrating good self-cleaning properties, water droplets rolling off the surface easily. These nanostructured surfaces were characterized and tested with the proper procedures, and both the coating stability in water and ice-repellent performance over time were carefully studied. Furthermore, it was found that the surface elaboration method presented in this research work, is simple, fast, easy-to-use and inexpensive and would be of interest for industrial or large-scale manufacturing.

2. Experimental Procedure

2. 1. Sample Preparation

All the coated samples tested in this work were prepared on AA2024 substrates, whose chemical composition is composed of Si of 0.50 wt.%, Fe of 0.50 wt.%, Cu of 3.8–4.9 wt.%, Mn of 0.30–1.0 wt.%, Zn of 0.25 wt.%, Mg of 1.2–1.8 wt.%, other impurity of 0.15 wt.%, and the remaining element Al (Spadaro et al., 2008, Yina et al., 2011). As it is evident, this alloy has a high Cu content, typically between 3.8-4.9% (wt. %) (Palominoa et al., 2007). The as-received Al substrates, 2 mm thick, were cleaned and degreased ultrasonically in organic solvents (methanol, acetone and Turco Redoline 53D alkaline solution, each for 8 min. The cleaned samples were blown-dried in N₂ gas flow and then etched in hot water (95 °C) for different times (Table 1). Finally, they were coated with FAS-17 solution for 3h to decrease the surface energy. Upon coating and prior to tests, the treated samples were removed from the solution, rinsed with copious amounts of methanol and blown-dried with N2 followed by heat-treatment at 80 °C for 2h to remove any volatile components or residual solvents. While the smaller samples (1.5 cm × 1.5 cm) were used to test the stability of the coatings in water, the larger ones (3.2 cm × 5.2 cm) were further used to evaluate their ice-repellent performance. Figure 1 is a schematic presentation of the sample preparation procedure.

2. 2. Coated Sample Analyses

The sample stability in water over time was characterized by means of contact angle measurements on samples immersed in deionized water for different periods of time. The wetting characteristics reported in Table 1 were obtained following the standard sessile drop method on a CA goniometer (DSA100 from Krüss) with controllable volume (4 μl) of water drops. Deionized water with water conductivity of ~0.32 μS/cm at ~19 °oC was used in the experimental process. These measurements were performed with the Young–Laplace method Kulinich and Farzaneh,2005, Menini and Farzaneh, 2009, Farhadi et al, 2011). Surface topographies were analyzed with scanning electron microscopy (SEM, Hitachi FEGSEM-SU 70) in high-vacuum mode and atomic force microscopy (AFM, Escope from Veeco). X-ray photoelectron spectroscopy (XPS) was performed with a Quantum-2000 instrument from PHI. The ice tested was of glaze type of up to ~1 cm thick and ~5 gr weight over the ~3.2×3.0 cm² area and prepared by spraying supercooled microdroplets of water (average size of ~80 µm) in a wind tunnel at subzero temperature (-10 °C) and a wind speed of 11 m/s, with a water feed rate of 2.5 g/m³ simulating "freezing rain". The requisite time in the tunnel for preparing glaze ice of up to ~1 cm thick was about 8 to 10 min. Prior to icing, all samples were placed in the tunnel for approximately 10 min to cool down. Iced samples were then spun in the centrifuge at constantly increasing speed. The shear stress was calculated taking into account the mass and area of the ice detached and by precisely detecting the rotational speed of the sample at the moment of ice failure (adhesive). The procedures of ice preparation and ice adhesion evaluation have been described in greater detail elsewhere (Kulinich and Farzaneh, 2009, Farhadi et al, 2011, Arianpour et al., 2013).

3. Results and Discussion

3.1. CA and CAH of Coated Samples

Aluminium alloy is a hydrophilic material with native oxidized top layer showing water contact angle and surface energy of ~40±3O and 57.73±1.11 (mN/m), respectively. After etching in hot water, the bare aluminium alloy surface showed water contact angle and surface energy of ~21±4O and 67.58±0.82 (mN/m), respectively. However, after modifying the etched Al surfaces with FAS-17, the as-prepared superhydrophobic surfaces of aluminium alloy showed water CA>150°, as shown in Fig. 2.

The water droplets did not come to rest and easily rolled off from the surface even when the surface was on a level table (<2°), which made it very difficult to measure the CAs values. As mentioned earlier, the samples wetting characteristics, listed in Table 1, were calculated according to the Young–Laplace method, considered as the most theoretically accurate one (Kulinich and Farzaneh, 2009).

Table 1. Preparation and properties of analysed samples (hot water temperature of 95 ^oC)

Sample	Preparation	Description	Immersion in hot water (min)	CA (deg.)	CAH (deg.)	Solid Fraction (%)
A	Dip-coating	Flat AI/FAS-17	0	108.2 ± 1	-	100
B	Dip-coating	Etched AI-FAS 17	180	148.3 ± 0.9	9 ± 1.1	21.6
C	Dip-coating	Etched AI-FAS 17	210	156.1 ± 0.8	5.7 ± 0.5	12.4
D	Dip-coating	Etched AI-FAS 17	240	165.6 ± 0.5	4.7 ± 0.7	4.6
E	Dip-coating	Etched AI-FAS 17	300	163 ± 0.7	5 ± 0.7	6.3

The XPS signals of C, O, Si and F, as shown in Fig. 3, are observed on the as-prepared superhydrophobic Al alloy surfaces, demonstrating well covered Al surfaces with low surface energy coating of FAS-17 molecules which significantly reduced the energies of the surfaces.

Figure 4 shows CA and CAH values of prepared samples with different etching time in hot water as well as the coated flat AA surface. While the measured contact angle on the flat Al sample coated with FAS-17 (sample A) is ~108.2° (and surface energy of 18.25±1.17 (mN/m)), it can be seen that the last two samples (D and E) show good superhydrophobic properties as CA>163° and CAH≤5°. However, sample C also shows superhydrophobic properties as its CA and CAH values are ~156° and ~5.7°, respectively. This implies that water droplets will rest on top of the rough asperities of solid-air composite surfaces (Cassie-Baxter wetting regime). In this regime, CA can be expressed as follows:

Cosθ∗ = f (1 + Cosθ) - 1

where θ^∗ and θ are the CA of the rough and flat surfaces, respectively, with the same surface chemistry, and f is the area fraction of the solid surface that contacts water (Quéré, 2005, Crick et al., 2010, Furuta et al., 2010, Spori, et al., 2010). The Cassie-Baxter model assumes that a droplet is suspended on the rough asperities and allows air trapping between them on a surface underneath the droplet. This air is a key factor for superhydrophobic behaviour, so that the f values on real superhydrophobic surfaces are small (Quéré, 2005, Crick et al., 2010, Furuta et al., 2010). The maximum CA value and minimum CAH is for sample D with CA and CAH values of 165.6° and 4.7°, respectively. Considering the obtained CA values, f can be calculated (Table 1), demonstrating a large amount of trapped air beneath the water droplets. As reported previously (Kulinich and Farzaneh, 2009), this results in a small water-solid contact areas on such surfaces.

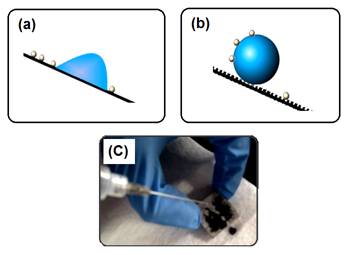

By decreasing the contact area between a water droplet and the surface, the three phase contact line at the solid/liquid interface is decreased. A slight increase in CAH values with increasing the etching time can be attributed to further micro-rods piling on the sample surface, leading a decrease in water rolling off the surface. However, all superhydrophobic samples demonstrated good self-cleaning property as the soil mesh was easily carried away by water droplet passing by as shown in Fig.5. Figure 6 shows scanning electron micrographs (SEM) of sample D at different magnifications while showing rough samples at micro/nano-scale, with the root-mean-square roughness (R_rms) measured automatically using atomic force microscopy for ≤320 nm. The root-mean-square roughness (R_rms) values measured for as-received and mirror-polished Al samples were 38 and 10 nm, respectively.

Since air was expected to be entrapped into such structures during wetting, the Cassie-Baxter wetting mode was expected for these samples with high surface roughness and low-energy top layers (Miwa et al., 2000, Kulinich and Farzaneh, 2004). Also, the high CA and low CAH values observed let us assume good surface coverage with FAS-17 molecules. The water-solid contact area on these samples was expected to be small, which is consistent with the small CAH values (~4-6°) and high CA values (~156.1-165.6°), which are characteristic of superhydrophobic surfaces. As it is evident, different micro- and/or nano-surface asperities can be found on etched Al alloy surfaces including nano-pieces, cavity or holes covered by nano-pieces and micro-rods. The Al sample is uniformly covered by nano-pieces with ~500 nm wide. Several micro-rods can be observed on the samples while scattered all over.

Figure 7 schematically illustrates the Cassie-Baxter model, where a large amount of air is entrapped in the surface irregularities on a rough surface, leading to superhydrophobic properties.

From the SEM micrographs, all etched treated samples have more or less similar morphology and are uniformly covered with nano-pieces. However, the total quantity of produced micro-rods increased while immersion time in hot water was increased. It is well known that by immersing Al samples in hot water, the samples will react with water and that Al (OH)₃ will be produced while releasing H₂ gas. Therefore, the following reactions (1 and 2) can be considered to happen:

Al + 3 H2O → Al (OH)3 + 3/2 H2

(1)

To be followed by:

2 Al (OH)3 → Al2O3 + 3 H2O

(2)

The formation of nano-pieces is probably due to the dissimilarity of chemical reaction kinetics between water and Al crystal faces. Faster reaction in one dimension results in formation of surface nano-pieces (Guo et al., 2005, Mingjie et al. 2010). The observed cavities coated with nano-pieces are probably due to inherent cavities during Al manufacturing.

3.2. Coating Stability in Water

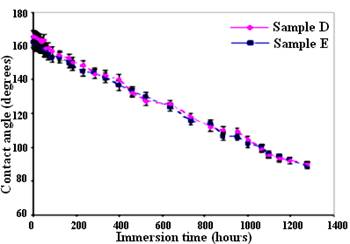

Figure 8 presents CA values as a function of immersion time in water for prepared nanostructured samples (samples D and E). Both samples demonstrate initial values of CA>163°, indicating well-coated nano-structured superhydrophobic surfaces. However, both coatings studied were found to slowly lose their hydrophobic properties after ~1280-h of immersion in water, associated with a decrease of their CA values. This tendency to lose surface hydrophobic properties is most likely due to the rupture of the Si-O-Al bond between FAS-17 molecules and the surface of etched Al caused by hydrolysis of these bonds. It is reasonable to say that after subjecting the Al surfaces to a wet environment, the FAS-17 layer undergoes some degree of degradation (Frignani et al. 2006). As a result, some alkylsilane molecules were removed from the surface, resulting in a decrease of its hydrophobic properties.

3.3. Evaluation of Ice-Repellent Performance

As natural icing events occur under more dynamic conditions than those previously applying for testing ice adhesion on materials (Somlo and Gupta, 2001, Petrenko and Peng, 2003, Sarkar and Farzaneh, 2009), this implies that the dynamic hydrophobicity of surfaces may play a role. This is believed to be even more important for rough nanostructured superhydrophobic surfaces. The glaze ice used to evaluate the ice repellent performance of the samples was prepared in a wind tunnel by spraying water micro-droplets with an average size of ~80 μm at subzero temperature (-10 °C)and a wind speed of 11 m/s with a water feed rate of 2.5 g/m³ , that is, under conditions very close to outdoor ice accretion during "freezing rain" (Kulinich et al. 2011, Arianpour et al., 2013). The procedure to evaluate ice adhesion strength, measured as the shear stress of ice detachment, was previously reported in greater detail elsewhere (Menini and Farzaneh, 2009, Kulinich and Farzaneh, 2009). Each sample studied was subjected to 12 successive icing/de-icing events and thus, ice adhesion strength to each coating was analyzed as a function of the number of icing/de-icing cycles. Due to the very high mobility of water (described with low CAH), the accretion of ice from "freezing rain" is delayed on such surfaces (Adam et al. 2010, Farhadi et al. 2011, Arianpour et al., 2013) which makes them very attractive as anti-ice materials. Figure 9 illustrates the shear stress of ice detachment from the samples as a function of the number of icing/de-icing cycles. All nano-structured superhydrophobic surfaces demonstrated noticeably close initial values of shear stress required to detach the ice, implying similar ice adhesion strength values. While uncoated as-received Al samples showed average ice detachment shear stress values of ~445±20 kPa, their counterparts coated with FAS-17 showed reduced values of ~65 kPa. In agreement with the previous studies on low-CAH superhydrophobic surfaces (Kulinich and Farzaneh, 2009), the initial values of shear stress of ice detachment on the as-prepared samples were ~7 times lower than those on as-received Al standard, which is consistent with the above mentioned Cassie-Baxter wetting regime, as shown in Fig. 7.

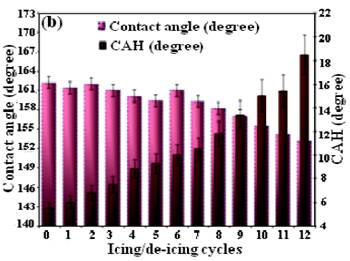

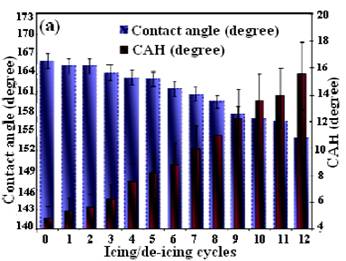

This reduction is attributed to the presence of engineered micro-/nano-hierarchical surface structures and low surface energy layers on the samples. However, the ice releasing performance of the samples gradually changed after several icing/de-icing cycles. All superhydrophobic samples demonstrated increase of ice adhesion strength if compared to the as-prepared surfaces. The observed increase in ice adhesion strength values is believed to be associated with a larger ice-solid contact area on these nano-structured surfaces after several icing/de-icing cycles (Kulinich and Farzaneh, 2009, Farhadi et al., 2011, Arianpour et al., 2013). As shown, after 12 icing/de-icing cycles, the samples demonstrated slight increase of ice adhesion strength which is believed to be associated with both a decay of the FAS-17 layers on the samples and a larger ice-solid contact area on the nanostructured surfaces after several icing/de-icing events. These samples seemed to be resistant to damage during icing/de-icing due to their more rigid asperities, made of Al_xO_y or Al hydroxide. In other word, these samples showed remarkably lower deterioration rates and consequently, higher abrasive resistance during the icing/de-icing cycles than those whose rough structures is based on practically loose nanoparticle-based samples prepared in our previous research work (Farhadi et al., 2011). This is expected due to different mechanical properties on which the samples prepared in this study had much firmer and stronger surface asperities. In parallel, contact angle and contact angle hysteresis values were also measured between icing/de-icing experiments. The water-repellent performance of both samples over time and after several icing/de-icing cycles was studied to better understanding of observed results. Figure 10 demonstrates how both contact angle and contact angle hysteresis values of samples D and E evolved as it was repeatedly subjected to icing/de-icing. It is evident from figure 10 that the water-repellent properties of both samples gradually deteriorated over time, which is seen as decreasing the contact angle values and increasing the wetting hysteresis (contact angle hysteresis, CAH) as they were randomly measured between icing/de-icing tests.

It is possible that by increasing the number of icing/de-icing more and more, the sample will finally demonstrate lower values of contact angle, thus not being superhydrophobic anymore. It is reasonable to assume that a bit deteriorated water repellency, the increased ice adhesion strength and the decrease in surface roughness due to the icing/de-icing cycles can be related to a gradual damage of the rough structures of the sample surfaces. As the surface roughness of the samples decreased, consequently, partial switch of the wetting regime from a pure Cassie (low contact angle hysteresis and high contact angle values) to a mixed Wenzel-Cassie regime was expected on such surfaces, which had to cause the observed gradual increase in ice adhesion strength (Kulinich and Farzaneh, 2009, Kulinich et al. 2011, Farhadi et al., 2011, Arianpour et al., 2013).

4. Conclusions

In this study, a simple method to elaborate fluoro-alkyl-terminated nanostructured superhydrophobic surfaces was provided by depositing a layer of FAS-17 on etched AA2024 surfaces in hot water, which showed good superhydrophobic and self-cleaning properties. This process is easy to control and time saving. The stability of such surfaces in water was tested by means of contact angle measurements, showing a gradual loss of their superhydrophobicity after ~1280-h immersion in deionized water, this being associated with a decrease and increase of water CA and CAH, respectively. Ice repellent performance of prepared nano-structured superhydrophobic coatings was evaluated after several icing/de-icing cycles and the results were compared to those on uncoated Al as a reference. The ice adhesion strength results illustrated that the anti-ice performance of the robust surface prepared by etching Al alloy substrates gradually deteriorated. More precisely, their ice-releasing performance gradually degraded during the icing/de-icing cycles. Consequently, the mechanical properties of such surfaces must be taken into account in the further development of anti-icing coatings. Overall, our easy and cheap method to engineer nanostructured superhydrophobic surfaces would be an excellent way to make superhydrophobic coatings for Al alloy surfaces on a large scale.

Acknowledgements

This research work has been conducted within the framework of the NSERC/Hydro-Quebec/UQAC Industrial Chair on Atmospheric Icing of Power Network Equipment (CIGELE) and the Canada Research Chair on Atmospheric Icing Engineering of Power Networks (INGIVRE) at Université du Québec à Chicoutimi. The authors would like to thank the CIGELE partners (Hydro-Québec, Hydro One, Réseau Transport d'Électricité (RTE), Alcan Cable, K-Line Insulators, Tyco Electronics, Dual-ADE, and FUQAC) whose financial support made this research possible. The authors also wish to thank Mme. H. Grégoire (CTA-CNRC) for her help with SEM analysis and F. Arianpour (Univ. of Quebec) for her help with some experiments.
